OCCMB(R) and OCCMA(R) boards for the OpenScape Business V3 features two LEDs that indicates the operating states.

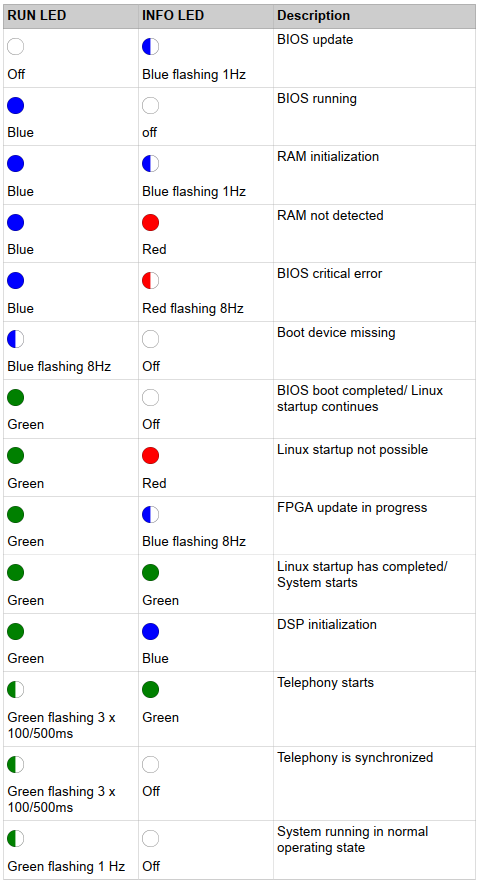

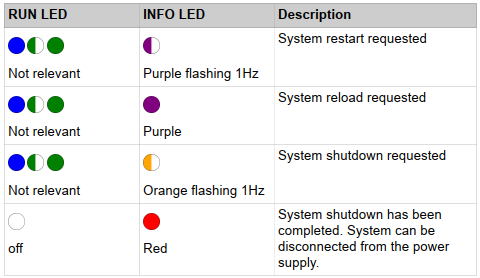

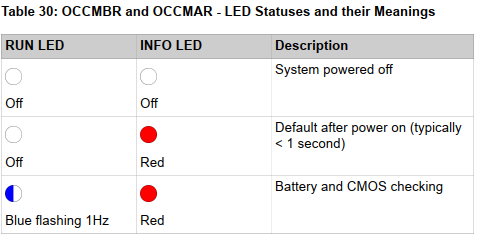

For all different operating states see tables below:

See for more information the OpenScape-Business-V4-OpenScape-Business-X3X5X8-Service-Documentation-EN.pdf
