The new OpenScape Desk Phone CP710 is available
This high-end device with advanced interoperability, easy-to-read, extra-large display and elegant user interface is a powerful phone that brings more than just voice communication to the desktop. In addition to 6 context-sensitive keys to the right of the display, it also offers 6 permanently accessible function keys for immediate access to function, speed dial or line keys. The two-line labels provide additional information appropriate to the function.
Together with the CP710, the Key module KM710 and the USB WiFi dongle are released.

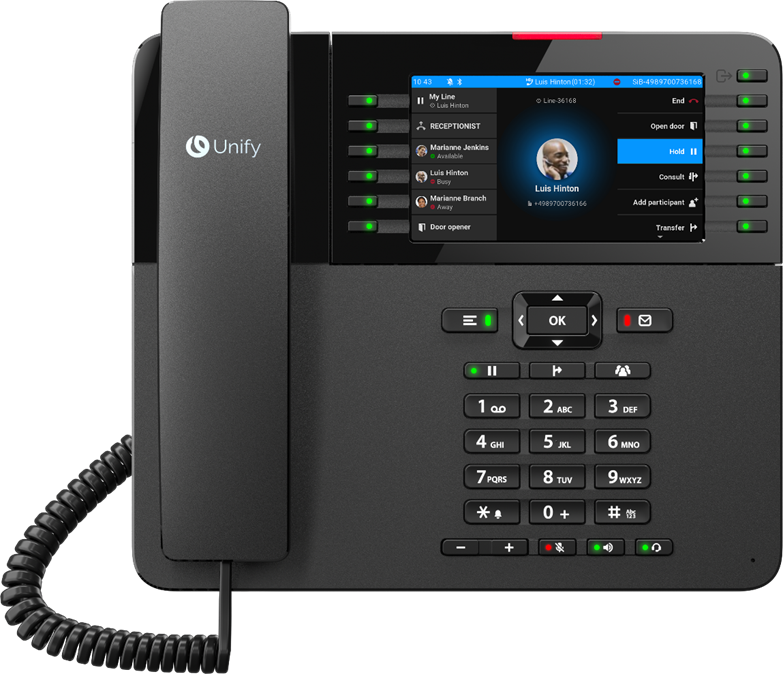

OpenScape Desk Phone CP710
Display
- Tiltable graphical TFT display, 5.0” (1280*720 pixel), color
- LED backlight (white)
- Signaling LED (red, green, amber)
Keys
- 6 permanent visible free programmable keys with LED and context sensitive, two line label
- 6 context sensitive soft keys with LED
- 6 fixed function keys (menu/presence/voicemail/hold/transfer/conference)
- 4-way navigator, plus OK-key
- 3 audio keys (Mute/Speaker/Headset) with LED
- Volume control +/-
- Open listening/hands free speaking (full duplex)
Connectivity
- Headset port (DHSG/EHS)
- 10/100/1000 Base-T Ethernet Switch
- USB Interface
- Bluetooth 2.1 BR/EDR and Bluetooth 5.0 LE (dual mode device)
- NFC
- Up to 4 Key Module KM710 or 4 Key Module KM410
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.3af Power over Ethernet, class 2 (max. 120mA USB load)
Placement
- Base, two different placement angles
- Wall mountable
Key Module KM710
- Optional display Key Module for OpenScape Desk Phone CP710
- possible to program up to 24 features on the KM710 via:
- 12 physically freely programmable feature keys with LEDs
- 1 layer shift key, to select two layers
- Max. 4 modules per phone
Key Module KM410 (will be released on a later date)
- Optional paper labeled Key Module for OpenScape Desk Phone CP710
- 16 free programmable feature keys with LEDs
- Max. 4 modules per phone
WiFi Stick CP10
- USB WLAN stick for CP210 and CP710
- operates as a WiFi client
- 2.4/5GHz Dual Band
- Compatible with 802.11ac, 11a, 11b, 11g and 11n
Please find all details on the Unify Wiki pages
